纺织实验室调节室也称为气候室， 恒温恒湿室， 用于样品制备阶段，在规定的温度和湿度下调节样品。
研硕开发了多种型号的恒温恒湿箱，每种型号都有其特定的特点。在测试纺织品样品的物理和机械性能之前，您始终可以找到适合您实验室的方法来平衡样品的温度和湿度。
[Product Features]
1．Full imported stainless steel shell or rust-proof steel plate (sprayed plastic) for an elegant and generous appearance.
2．Imported refrigeration unit with key components from international brands. The entire system is equipped with multiple protection devices to improve operational reliability.
3．Ingenious air duct structure with small temperature and humidity deviation, high uniformity and anti-condensation function.
4．The main door is equipped with an observation window with a light for convenient observation of the test sample status during the experiment.
5．The system is easy to operate, install and maintain.
[Technical Specifications]
| Model | Programmable Constant Temperature and Humidity Test Chamber YS-SDJ-Capacity-ABCD | |||||||||||||||||
| Internal Volume (L) | 100 | 150 | 225 | 408 | 800 | 1000 | ||||||||||||
| Working Chamber Size (W×D×H) (mm) | 500x400x500 | 500x500x600 | 600x500x750 | 800x600x850 | 1000x800x1000 | 1000x1000x1000 | ||||||||||||
| External Dimension (W×D×H) (mm) | 700x1390x1580 | 700x1490x1680 | 800x1490x1780 | 1000x1590x1930 | 1200x1790x2080 | 1200x1990x2080 | ||||||||||||
| Window Size (W×H) (mm) | 214x300 | 214x300 | 280x350 | 360x510 | 360x510 | 360x510 | ||||||||||||
| Minimum Low Temperature | -20 | -40 | -70 | -20 | -40 | -70 | -20 | -40 | -70 | -20 | -40 | -70 | -20 | -40 | -70 | -20 | -40 | -70 |
| Power (KW) | 4.5 | 5 | 6.5 | 5 | 5.5 | 7 | 5.5 | 6 | 7.5 | 6 | 7.5 | 10 | 9 | 10 | 11 | 10.5 | 11 | 12 |
| Voltage AC (V) | 220 | 380 | 220 | 380 | 220 | 380 | 220 | 380 | 380 | 380 | ||||||||
| Weight (kg) | 250 | 300 | 400 | 520 | 630 | 700 | ||||||||||||
| Temperature and Humidity Control Method | Balanced Temperature and Humidity Control Method (BTHC) PID Intelligent Regulation | |||||||||||||||||
| Product Performance | Air-cooled, the machine's air-cooled chamber is at room temperature 25°C when empty. | |||||||||||||||||
| Temperature Range | A: -40°C~+150°C; B: -20°C~+150°C; C: -60°C~+150°C; D: -70°C~+150°C (Please choose, normally A: -40°C~+150°C) | |||||||||||||||||
| Humidity Range | 20%~98%R.H (10%~98%R.H, 5%~98%R.H; customized for special conditions) | |||||||||||||||||
| Temperature Distribution Uniformity | ≤±2°C | |||||||||||||||||
| Temperature Control Fluctuation | ±0.5°C | |||||||||||||||||
| Temperature Deviation | ≤±2°C | |||||||||||||||||
| Humidity Deviation | 75%R.H <±5%R.H; 75%R.H ≥±3%R.H | |||||||||||||||||
| Humidity Fluctuation | ≤±2.5%R.H | |||||||||||||||||
| Humidity Distribution Uniformity | 225L≤±3%; 408L≥±5% | |||||||||||||||||
| Heating Rate | About 2°C/min; empty load (temperature rate 2~25°C/min, linear/non-linear, customized for special conditions) | |||||||||||||||||
| Cooling Rate | About 0.7~1.7°C/min; empty load (temperature rate 2~25°C/min, linear/non-linear, customized for special conditions) | |||||||||||||||||
| Temperature and Humidity Resolution | 0.01°C/0.1%R.H | |||||||||||||||||
| Inner Chamber Material | SUS304 Mirror Stainless Steel | |||||||||||||||||
| Outer Shell Material | Rust-proof Cold-rolled Steel Plate Spray/SUS304 Brushed Stainless Steel | |||||||||||||||||
| Insulation and Heat Insulation | Germany Bayer Polyethylene Foam (PU Foam Insulation) | |||||||||||||||||
| Refrigeration Method | Fully Hermetic Two-stage Compressor (Air-cooled) | |||||||||||||||||
| Refrigeration Compressor | France Tecumseh TECUMSEH Compressor/Large Model: Germany Bitzer BITZER Compressor/Germany GEA Bock Compressor | |||||||||||||||||
| Refrigerant | R404/R23 (Environmentally Friendly Refrigerant) | |||||||||||||||||
| Condensation Method | Air-cooled | |||||||||||||||||
| Heater | Nickel-chromium Alloy Electric Heating Tube Heater | |||||||||||||||||
| Humidifier | Boiler-type Stainless Steel Aluminum-clad Heater | |||||||||||||||||
| Air Inlet System | Centrifugal Fan | |||||||||||||||||
| Airflow Method | Wide-type Forced Air Circulation (Top Inlet and Bottom Outlet) | |||||||||||||||||
| Control System | Taiwan TATO/South Korea TECH Three-element | |||||||||||||||||
| Water Supply Method | Automatic Water Supply Device (Explained before selection) | |||||||||||||||||
| Water Supply Tank | Manual Drawer-type Water Tank | |||||||||||||||||
| Water Quality | Resistivity >500MΩ | |||||||||||||||||
| Standard Configuration | 1 Observation Window (Double-layer Hollow Tempered Conductive Glass); 1 Test Hole φ50mm (on the left); 2 Sample Racks; 1 Inner Box Lighting (Fluorescent Lamp); 1 Water Supply Tank; 1 Gas Belt for Dehumidification; 4 Small Casters; 1 Power Cord. | |||||||||||||||||
| Ambient Temperature | +5°C~+28°C (Water-cooled 5°C~+35°C) | |||||||||||||||||
| Relative Humidity | ≤85%RH | |||||||||||||||||
| Precautions | This equipment cannot be used to test or store items containing flammable, explosive, volatile, or corrosive gases. | |||||||||||||||||
研硕在行业内拥有 11 年的经验，这意味着我们的客户可以信赖我们产品的可靠性。长期的经验赋予我们深厚的知识，这体现在产品的创新和质量上。我们与超过 1000+ 名客户建立了牢固的关系，使您的反馈和需求成为我们优势的重要组成部分。我们也非常擅长解决您可能遇到的任何问题。这些是选择我们作为高质量测试人员的关键原因。
1V1支援
在线英语技术援助以解决问题
免费培训
免费在线培训、免费住宿、免费食品、免费现场培训
现场维护
全球工程师定期前往现场进行仪器维护
免费软件更新
免费无线软件更新，满足最新标准
{pboot:sortpics scode=38 num=8}
{/pboot:sortpics}
[pics:title]
ASTM D1776
GB6529

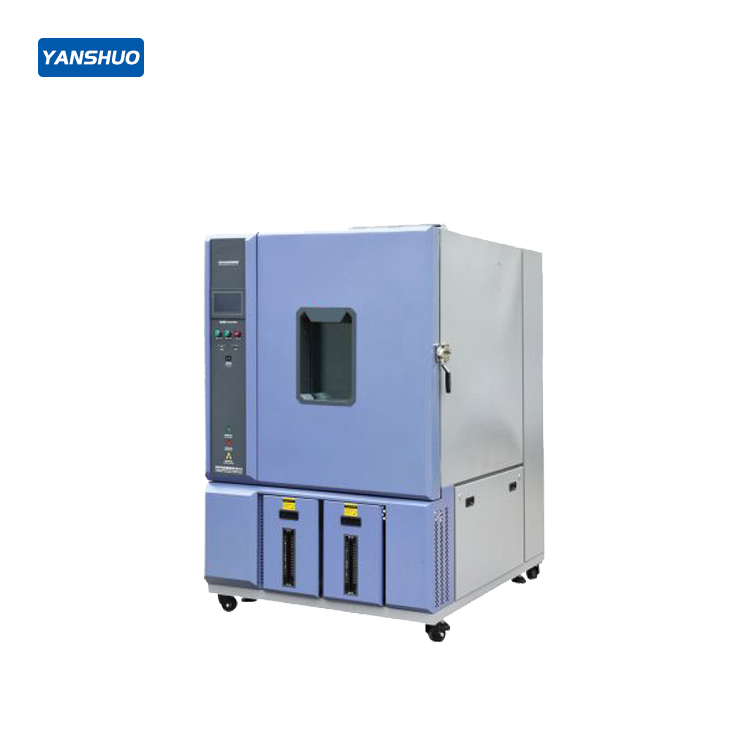

YS-SDJ Programmable Constant Temperature and Humidity Test Chamber
