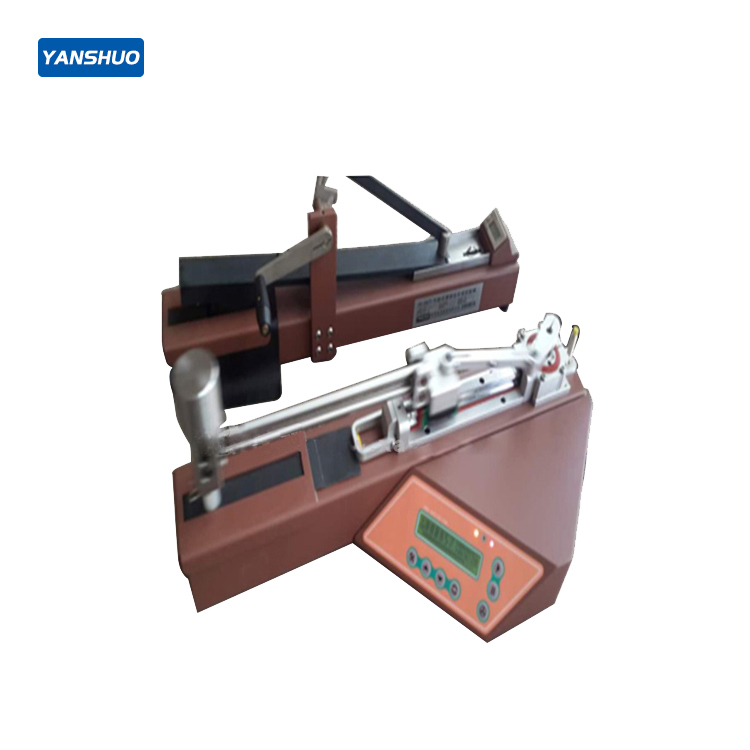

[Scope of Application]

Suitable for testing the color fading performance of dyed fabrics under friction in dry/wet conditions. It is used to test the performance of leather materials in industries such as textiles, footwear, leather, automotive interiors, clothing, luggage and handbags, as well as in research laboratories, commodity inspection and arbitration institutions, and technical supervision departments.

[Compliant Standards]

ISO 105-X12, AATCC 8, GB/T 3920, BS 1006 D02, etc.

The basic principle is: The test sample rubs repeatedly with white cotton cloth for a specified number of times under a certain pressure and within a certain stroke (100/104mm). The color fading grade is evaluated by comparing the white cotton cloth with the color fastness gray scale, which provides a basis for improving fabric dyeing.

[Instrument Features]

1．This machine is designed with SW software assistance, featuring advanced ergonomic design and a low-case structure.

2．Adopts 304 stainless steel and aluminum alloy accessories.

3．Equipped with an LCD screen for display, and the test times can be set arbitrarily within the range of 0～99,99,99.

4．The friction process starts from the 0-point and stops at the 0-point after reaching the set number of times, ensuring highly accurate friction counts.

5．The friction speed can be set arbitrarily between 20~80 RPM.

6．Adopts a parallel rod structure, with no restrictions on the thickness of the test sample and the thickness of the padding (such as water-resistant fine sandpaper).

7．The machine has a compact structure, weighing about 6.0Kg, getting rid of the cumbersome image.

8．Features low-power consumption design to save your operating costs.

9．Can be used with white cotton cloth compliant with American standards and European standards.

[Technical Parameters]

1．Sample Size: Not less than 50mm×140mm

2．Size of Standard Friction White Cotton Cloth: 50mm×50mm or other specifications

3．Friction Head Size: Circular (Φ16mm) or rectangular (19×25.4mm)

4．Friction Hammer Weight: 9.0N

5．Friction Speed: 60 RPM (can be set via software)

6．Friction Distance: Adjustable (100/104mm)

7．Controller: CSM203, which can be set arbitrarily between 1~999999 and stop automatically.

8．Power Supply: 1∮220V/50Hz, 3A

9．Machine Dimensions: 21cm×60cm×20cm

10．Machine Weight: 6.0Kg

11．Adopts computer-aided design, with a compact structure to ensure the optimization of processing technology.

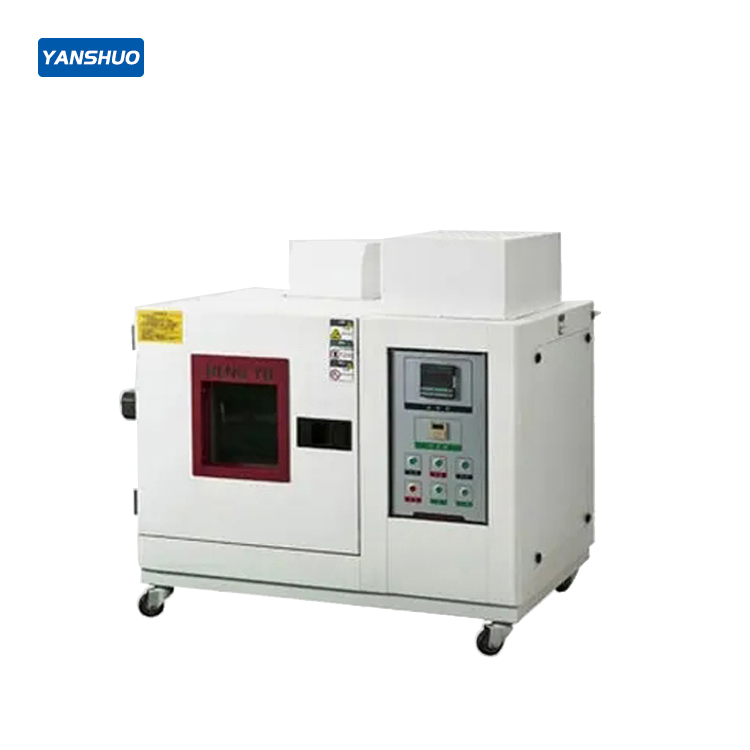

[Scope of Application]

Used to test the resistance of colors of various textiles to ozone in the atmosphere with a certain temperature and humidity.

[Compliant Standards]

GB/T 11041: Test Method for Color Fastness to Ozone in the Atmosphere of Textiles

ISO 105-G03: Color Fastness to Ozone in the Atmosphere

AATCC 109: Color Fastness to Ozone in Low-Humidity Atmosphere

[Technical Parameters]

1．Temperature Range: (10～50) ℃

2．Humidity Range: (50～90) %RH

3．Temperature Accuracy: ±1.0 ℃

4．Humidity Accuracy: ±3 %

5．Ozone Concentration Range: (0～500) pphm

6．Ozone Generation Method: Static air discharge method

7．Ozone Adjustment Method: Flow rate controllable

8．Inner Chamber Size: (40×40×50) cm
