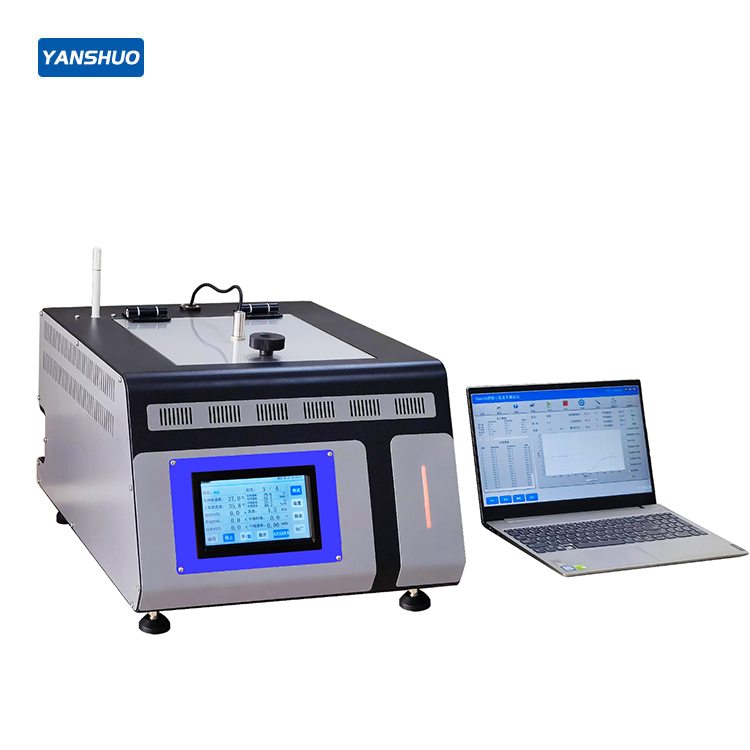

【Product Features】

1．Large-screen color touch screen display with Chinese and English interface menu operation.

2．The core control component adopts STMicroelectronics' 32-bit multi-function motherboard.

【Technical Parameters】

1．Wind tunnel: Capable of generating 0.2–3m/sec air flow

2．Heating plate: 300mm×300mm±1mm

3．Flexible heating sheet: 300mm×300mm±1mm;

4．Insulating cork board: 300mm×300mm±1mm

5．Heating plate temperature: 37±0.5oC (with overheat protection)

6．Wind speed: 0-2.5m/s±0.1m/s

7．Infrared temperature sensor: 15-50oC±0.1oC

8．Data transmission: USB data transmission

9．Test interface: Both curves and charts are available

10．Test report: Automatically saved for easy printing

11．Power supply: AC 220V, 50Hz

12．Overall dimensions: 450(L)×320(W)×170(H)mm

13．Weight: Approximately 45kg

【Configuration List】

1．Main unit: 1 piece

2．Product certificate: 1 piece

3．Product user manual: 1 copy

4．Delivery order: 1 piece

5．Acceptance form: 1 piece

6．Product brochure: 1 copy
