【适用范围】

Evaluates the fabric's surface smoothness, seam flatness, and crease retention.

【相关标准】

AATCC 888 (Smoothness of Fabric Seams After Repeated Home Laundering and Pressing)AATCC 88C (Retention of Fabric Creases After Repeated Home Laundering and Pressing)AATCC 124 (Appearance of Fabrics After Repeated Home Laundering)AATCC 128 (Wrinkle Recovery of Fabrics, Appearance Method)AATCC 143 (Appearance of Garments After Repeated Home Laundering)AATCC 178 (Visual Assessment and Rating)Also complies with: NOXT TM24/TM30 standards

[Technical Parameters]

1．Overall dimensions: 1.83×0.28×1.83m (L×W×H)

2．Weight: 62KG

[Operating Methods]

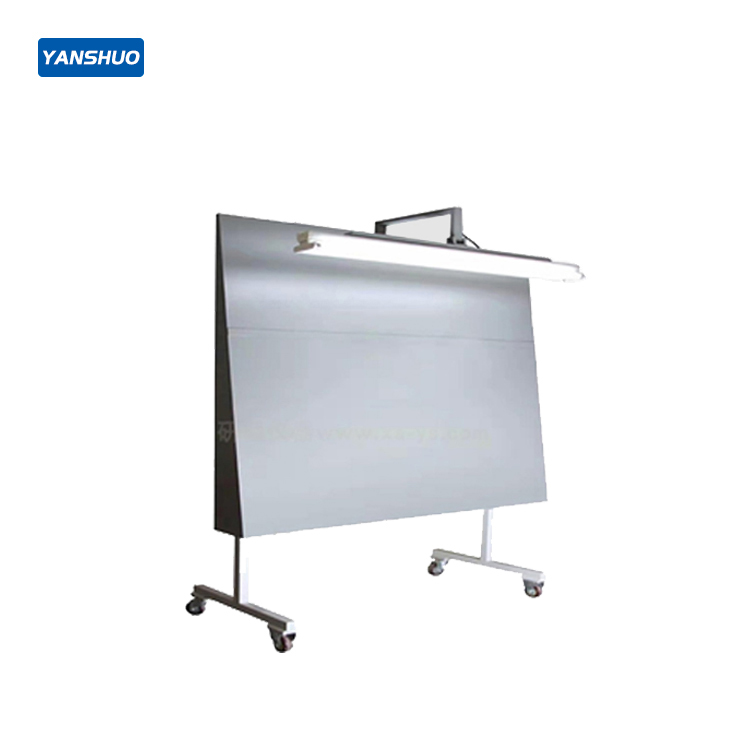

1．On a standard light source and evaluation board, evaluate and grade the appearance of the test sample by comparing it with standard charts.

2．The evaluation shall be conducted in a darkroom equipped only with the instrument's light source; reflections from any ambient light will affect the rating results.

3．The rating observation board is equipped with 2 cold light sources with a length of 2400mm or 1200mm.

4．The equipment is equipped with a switch control and uses a high-frequency power supply control device.

5．The rating observation board can be mounted on a wall or a sliding cart, and can also be customized according to user requirements.
