【适用范围】

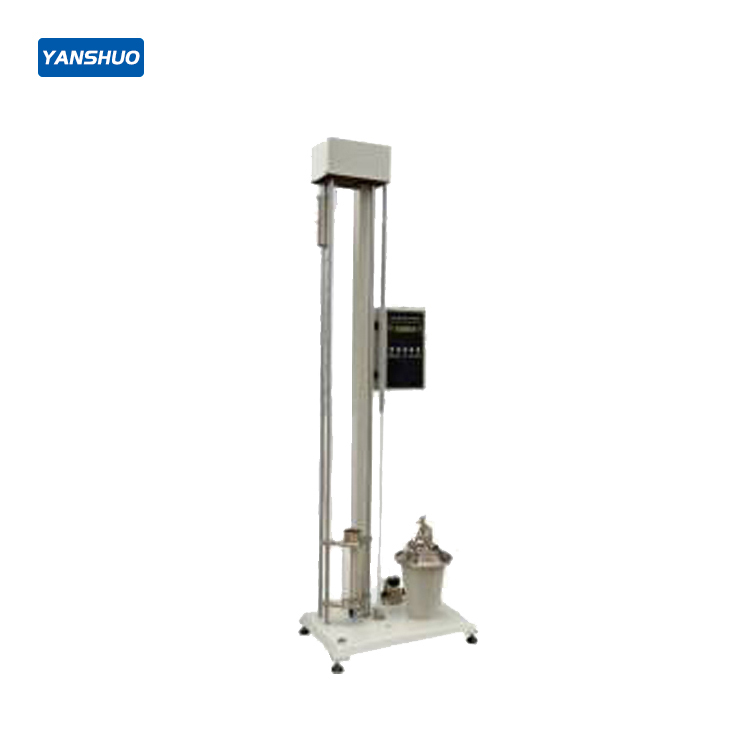

Used to test the water penetration resistance of various materials such as dense fabrics, coated fabrics and non-woven fabrics.

【相关标准】

GB/T4744; FZ/T01004; ISO811; AATCC127; JISL1092, etc.

[Technical Parameters]

1．Measuring range: 100～1200mm water column

2．Sample chuck area: 100cm²

3．Water tank rising speed: 100±5mm/min or 600±5mm/min

4．Accuracy error: ≤1.5mm

5．Water tank capacity: 1000ml

6．Lifting drive: Stepper motor

7．Power supply: AC220V, 50HZ

8．Power: 100W

9．Overall dimensions: 710×510×2250mm

10．Net weight: 95kg
