【适用范围】

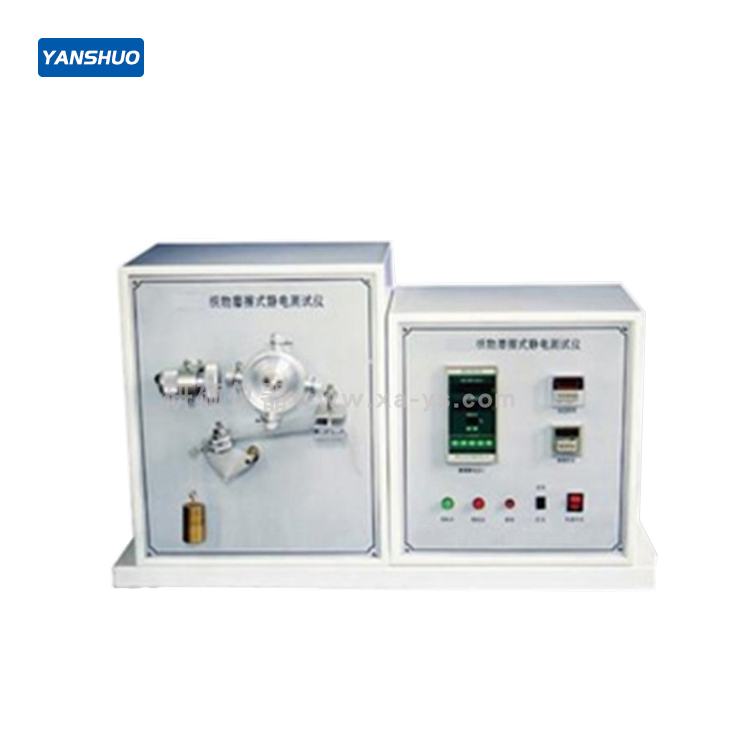

Used for evaluating the electrostatic properties of fabrics, yarns and other materials after being charged by friction. Under certain tension conditions, the sample is rubbed against the standard cloth, and the frictional charging status of the sample is evaluated by the voltage generated within a specified time.

【相关标准】

JIS L1094; GB/T 12703.5

【Technical Parameters】:

1．Display Mode: LCD display with Chinese menu

2．Voltage Measurement Range: 0～10KV

3．Voltage Measurement Accuracy: ±1%

4．Dimensions of Metal Drum: Outer diameter 150±1mm, width 60±1mm

5．Rotation Speed of Metal Drum: 400r/min

6．Standard Cloth Clip: Width 25±1mm, distance between left and right clips 130±3mm

7．Weight of Hammer: 500g

8．Overall Dimensions: W540×D420×H480mm

9．Power Supply: AC220V±10%, 40W
