【适用范围】

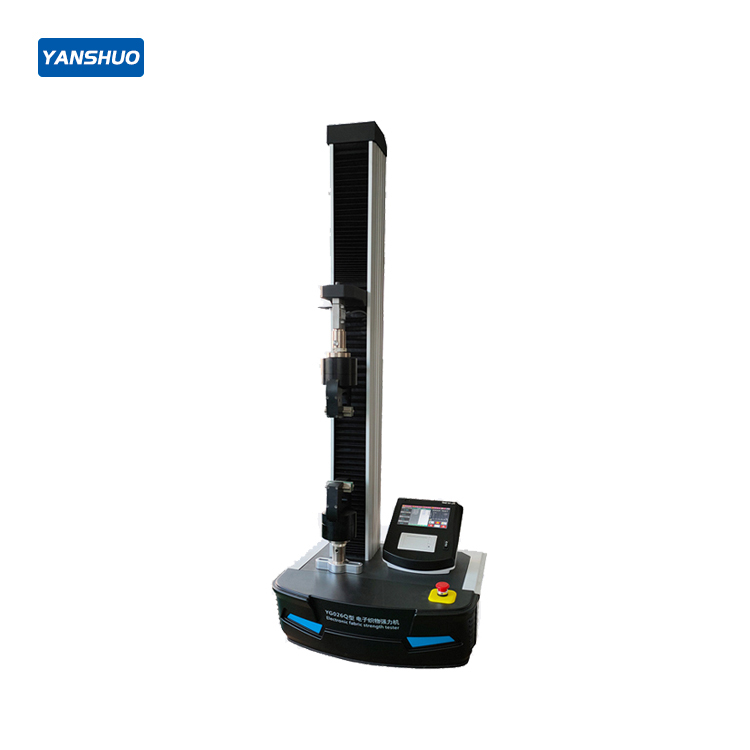

Used to test various mechanical properties such as breaking strength, elongation at break, tearing, peeling, bursting, yarn slippage, elastic recovery, and seam slippage of fabrics, non-wovens, paper, webbing, and other materials. It features various testing functions such as constant speed, constant displacement, constant time, constant load, and constant elongation.

【相关标准】

1.Breaking Strength (Strip Method): GB/T3923.1; ISO13934.1; ASTM D5035;(Grab Method): GB/T3923.2; ISO13934.2; ASTM D5034;

2.Tear Strength (Tongue Tear): GB/T3917.2; ISO13937.2; ASTM D2261;

(Trapezoid Tear): GB/T3912.3; ISO9074.4; ASTM D5587;

3.Seam Slippage: GB/T13772.1/2/3; ISO13936.1/2; ASTM D434;

4.Peel Strength: FZ/T01085; ASTM D2724/3936; AATCC 136; FZ/T80007.1; FZ/T01010; FZ/T60011

5.Ball Bursting: GB/T19976; FZ/T01030; ISO3303; ASTM D3787/6796;

6.Elastic Recovery: FZ/T70005; FZ/T70006; BS 4952;

7.Single Yarn Strength: GB/T3916/14344; ISO2062; ASTM D2256;

8.Other Standards: GB/T4689.6; GB/T13763; GB/T13773; GB/T14800; GB/T15788; GB/T16989; FZ/T01031; FZ/T20019; FZ/T60005; FZ/T60006; FZ/T70007; ISO 13935.1/2; ASTM D1683; ASTM D4964; ASTM D5733/5735; BS 3320.

【Instrument Features】:

1. Instrument columns made of aluminum alloy profiles with oxidation treatment for scratch resistance.

2. Utilizes Philips 32-bit industrial-grade microcontroller control and an 18-bit A/D converter from Analog Devices (USA), offering strong anti-interference capability and extremely fast data processing and transmission.

3. Dynamic sampling frequency exceeds 1000 times/sec, effectively capturing peak data values accurately during testing.

4. Touchscreen LCD operation with full Chinese menu; built-in printer for direct report output; simple operation.

5. PC online control for dynamic tracking of instrument status; transmits test data and displays strength-elongation curves in real-time.

6. Pneumatic clamping, AC servo control system drive, ball screw transmission, ultra-quiet operation.

7. Built-in automatic digital force calibration system.

8. Integrated test function design with open data connection interface enables multi-purpose use.

9. Force units: CN, N, Kg, lb, etc., freely convertible.

10. Equipped with overload, over-travel, over-voltage, and other protections to ensure safe operation.

【Technical Parameters】:

1. Force Range: 30kg; 50kg; 100kg; 250kg; Full Scale 1～100% (Optional)

2. Force Accuracy: ≤±0.2% F.S.;

3. Tensile Speed: 1～1000 mm/min (Arbitrarily Set);

4. Return Speed: 1～1000 mm/min (Arbitrarily Set);

5. Sampling Frequency: >1000 times/sec;

6. Elongation Resolution: ≤0.01 mm;

7. Effective Stroke: 600mm (Pneumatic Clamp); 650mm (Manual Clamp);

8. Power Supply: AC220V±10%;

9. Power: 500W;

10. Dimensions: 500×470×1460mm;

Net Weight: 105kg.
