【适用范围】

用于机织物、针织物、起绒织物、涂层织物及非织造布的耐磨损性能、起毛起球性能和表面变化的测定。

【相关标准】

GB/T 21196、GB/T 4802.2、GB/T 13775、FZ/T 20020、ISO 12945-2、ISO 12947 ASTM D4966、ASTM D4970、ASTM D3886、JIS L1096、IWS Tm196/ TM112

【Scope of Application】

Used for determining the abrasion resistance, pilling resistance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics.

【Compliant Standards】

GB/T 21196, GB/T 4802.2, GB/T 13775, FZ/T 20020, ISO 12945-2, ISO 12947,ASTM D 4966, ASTM D 4970, ASTM D 3886, JIS L 1096, IWS Tm196/ TM112

【Instrument Features】

1．Standard Lissajous curve (Abrasion curve, Pilling curve)

2．Weight and key components are made of 304 stainless steel, featuring attractive appearance and durability.

3．Pressure plate is made of special aluminum alloy to ensure no deformation after long-term use.

4．Needle bearing connection and transmission ensure no test error for each workbench.

5．Multiple sets of operating programs can be preset, with various counting modes (add counting and subtract counting).

6．Nine stations with independent cumulative counting, and single station can be locked at any time for convenient test management.

7．Controlled by color touch screen, with Chinese and English menu operation interface.

【Technical Parameters】

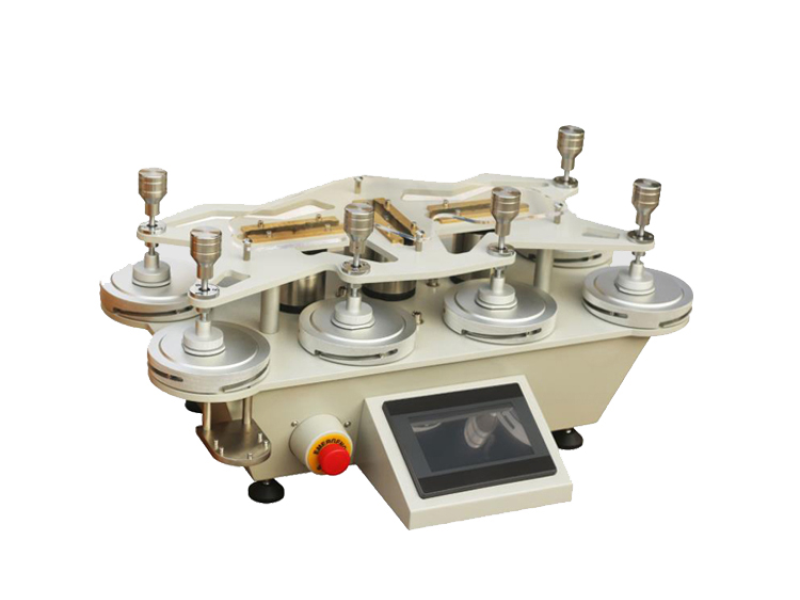

1.Number of stations: 6

2.Counting range: 0～999,999 cycles

3.Stroke: Horizontal: 60.5±0.5mm; Vertical: 24±0.5mm

4.Mass of pressure objects:

a.Gripper: 198±2g

b.Weight for garment fabric samples: 395±2g

c.Weight for furniture decoration samples: 594±2g

d.Type B gripper: 155±1g

f.Stainless steel disc: 260±1g

5.Effective friction diameter of abrasive block:

Type A 198g (1.96N) friction head: Φ28.65±0.05mm

Type B 155g (1.52N) friction head: Φ90±0.10mm

6.Relative movement speed between gripper and grinding table: 50±2r/min

7.Mass of sample loading weight: 2385±10g

8.Overall dimensions: 885×600×410mm

9.Power supply: AC220V, 50Hz, 500W

10.Weight: 150kg
